Reliable and Durable Structural Steel
Thaleen Development & Facilitate Management stands as a leading supplier of structural steel in the UAE, delivering high-quality steel products that meet international standards for construction, infrastructure, oil & gas, and industrial projects. Our structural steel range is sourced from reputable mills and complies with globally recognized specifications to ensure strength, durability, and performance. We supply:

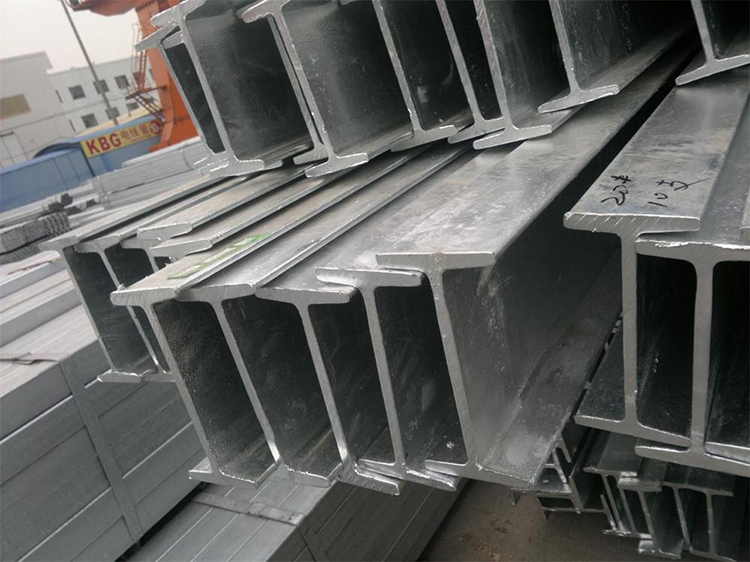

1. Structural Sections
| Product Type | Size Range | Applicable Standards |
|---|---|---|
| Universal Beams (UB) | 127 x 76 to 914 x 419 | EN 10025 S275 JR, BS 4360 Grade 43A |
| Universal Columns (UC) | 152 x 152 to 356 x 406 | EN 10025 S275 JR, BS 4360 Grade 43A |
| UPN Channels | 80 x 45 to 300 x 100 | EN 10025 S275 JR |
| Equal Angles | 25 x 25 mm to 250 x 250 mm | EN 10025 S275 JR |
| Unequal Angles | 100 x 75 mm to 200 x 100 mm | EN 10025 S275 JR |
| Flat Bars | 25 x 3 mm to 250 x 25 mm | EN 10025 S275 JR |
2. Hot Rolled Mild Steel Plates
| Specification | Details |
|---|---|
| Standard Dimensions | 1.50M x 6M, 2.00M x 6M, 2.50M x 8M, 2.50M x 10M, 2.50M x 12M, 3.05M x 12M |
| Thickness Range | 4 mm to 80 mm |
| Applicable Standards | BS 4360 Grade 43A, EN 10025 S275 JR, ASTM A36, ASTM A283 Grade C |
3. Hot Rolled High Tensile Plates
| Specification | Details |
|---|---|
| Standard Dimensions | 1.50M x 6M to 3.05M x 12M |
| Thickness Range | 4 mm to 80 mm |
| Applicable Standards | BS 4360 Grade 50B, EN 10025 S355 K2G3, EN 10025 S355 J2G3 |
4. Pressure Vessel Plates
| Specification | Details |
|---|---|
| Standard Dimensions | Up to 3.05M x 12M |
| Thickness Range | 4 mm to 80 mm |
| Applicable Standards | ASTM / ASME SA 516 Grade 70 (Normalized) |
5. Gratings
| Specification | Details |
|---|---|
| Finish | Black or Galvanized |
| Type | Plain or Serrated |
| Base Standard | BS 4360 Grade 43A |
| Galvanizing Standards | BS 729, ASTM A123 |
6. Hollow Sections
| Specification | Details |
|---|---|
| Size Range | 16 x 16 to 80 x 40 and 80 x 80 to 400 x 200 |
| Thickness Range | 1.2 mm to 4.0 mm |
| Applicable Standards | JIS G3466, S355 J2H, EN 10025 |
With a commitment to quality, compliance, and timely delivery, Thaleen Development & Facilitate Management ensures reliable structural steel solutions tailored to meet the diverse requirements of projects across the UAE and beyond.
